317L Description

Alloy 317L (UNS S31703) is a low carbon corrosion resistant austenitic chromium-nickel-molybdenum stainless steel. The high levels of these elements assure the alloy has superior chloride pitting and general corrosion resistance to the conventional 304/304L and 316/316L grades. The alloy provides improved resistance relative to 316L in strongly corrosive environments containing sulfurous media, chlorides, and other halides.

The low carbon content of Alloy 317L enables it to be welded without intergranular corrosion resulting from chromium carbide precipitation enabling it to be used in the as-welded condition. With the addition of nitrogen as a strengthening agent, the alloy can be dual certified as Alloy 317 (UNS S31700).

Alloy 317L is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, however the material will harden due to cold working. Alloy 317L can be easily welded and processed by standard shop fabrication practices.
17L has excellent corrosion resistance in a wide range of chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills. Increased levels of chromium, nickel and molybdenum compared to 316L stainless steel improve resistance to chloride pitting and general corrosion. Resistance increases with molybdenum alloy content. 317L is resistant to sulfuric acid concentrations up to 5 percent at temperatures as high as 120°F (49°C). At temperatures under 100°F (38°C) this alloy has excellent resistance to solutions of higher concentration. However, service tests are recommended to account for the affects of specific operating conditions that may affect corrosion behavior. In processes where condensation of sulfur-bearing gases occurs, 317L is much more resistant to attack at the point of condensation than conventional alloy 316. The acid concentration has a marked influence on the rate of attack in such environments and should be carefully determined by service tests.
Welding 317L
317L is readily welded by a full range of conventional welding procedures (except oxyacetylene). AWS E317L/ER317L filler metal or austenitic, low carbon filler metals with molybdenum content higher than that of 317L, or a nickel-base filler metal with sufficient chromium and molybdenum content to exceed the corrosion resistance of 317L should be used to weld 317L steel.

Chemical Composition %

% C Cr Ni Mo Cu P Mn Si S N
min 18 11 3
max 0.03 20 15 4 0.045 2 1 0.03

Mechanical & Physical Properties

0.2% Yield Strength Tensile Strength Elongation Modulus of Elasticity Density Melting Range
MPa MPa % GPa g/cm³ °C
260 595 55 200 8 1390-1440
  • COMMON TRADE NAMES
  • Type 317L
  • SUS 317L
  • Forta 317L
  • X2CrNiMo18-15-4
  • 022Cr19Ni13Mo3
  • 03Х18Н14М4
  • UNS S31703

Specification

  • Plate:ASTM A240
  • Bar:ASTM A276
  • Forging:ASTM A182
  • Pipe-Seamless:ASTM A312
  • Pipe-Welded:ASTM A358
  • Flange:ASME B16.5
  • Fitting:ASTM A403

APPLICATION

  • Air Pollution Control — flue gas desulfurization systems (FGD)
  • Chemical and Petrochemical Processing
  • Pulp and Paper
  • Power Generation
  • Food and Beverage Processing
  • Oil and Gas
  • Marine

Welding consumables

  • TIG / GTAW：ER317L
  • SMAW：E317L
  • SAW：ER317L-4 Strip
  • Flux: SJ601, HJ260

What Can We Offering

Available Product Range (in mm)

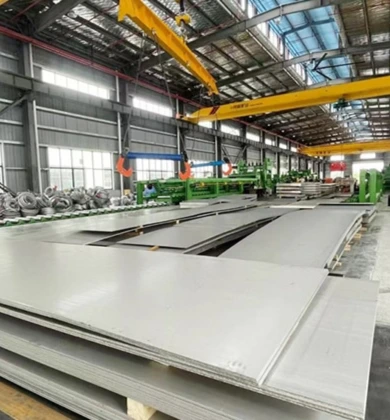

  • Hot-Rolled Steel Plates
  • Thickness: Ranging from 3mm to 120mm
  • Width: 600mm-2500mmStandard Width: 1000, 1219, 1500, and 2000mm
  • Length:1000mm-25000mm
  • Cut to Length: 2000 2440, 3000, 3048 and 6000mm
  • Surface Finishes:#1,#2D,#2B,#CBA,#2,#2BA,NO.1
  • Cold-Rolled Steel Sheet/Plate
  • Thickness: Ranging from 0.2mm to 4mm
  • Width: 600mm-2000mm
  • Standard Width: 1000, 1219, 1500, and 2000mm
  • Length:1000mm-6000mm
  • Cut to Length: 2000 2440, 3000, 3048 and 6000mm
  • Form: Sheet Or Coil

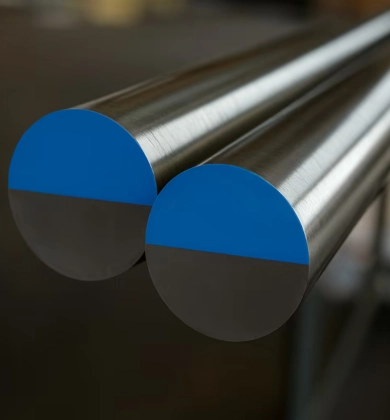

Available Round Bar Dimensions (in mm)

  • Diameter
  • General Range: 3mm to 800mm
  • Common Range: 25mm to 152mm
  • Specialized: Up to 300mm or more for certain applications
  • Length
  • Standard: 1 to 6 meters
  • Custom: Available in custom cut lengths
  • Other dimensions
  • Forms: Available in various forms including round, square, hex, flat, billet, and ingot
  • Finishes: Common finishes include bright, polished, and black
  • Tolerance:±0.05 mm (cold-drawn), ±0.4 mm (hot-rolled)
251022-home flange-390x420

Type Of Flangs (Size/Dimensions)

  • Welding Neck, Reducer Flange,Socket Weld Flange
  • Dimensions:½” – 48″（DN15-DN1200）
  • Pressure Class:150# 300# 600#900#1500#
  • Facing Type:RF,FF,RTJ
  • Slip-On Flange,Lap Joint Flange,Threaded Flange
  • Dimensions:½” NB – 24″ NB（DN15 – DN600）
  • Pressure Class: Class 150 to 2500
  • Face: Raised face (RF), Ring type joint (RTJ)
  • Blind Flange
  • Dimensions:½” – 60″（DN15-DN1500）
  • Pressure Class:150# 300# 600#900#1500#
250918-pipe-390x420

Types of Steel Pipes & Tubes

  •  Seamless Pipe
  • OD Φ6 – Φ630 mm, WT 0.5 – 80 mm
  • Welded Pipe
  • OD Φ15 – Φ3000 mm (up to 3m for spiral)
  • Precision Tube
  • OD Φ4 – Φ100 mm, WT tolerance ±0.05mm
  • Capillary Tube
  • OD 0.5 – 6 mm, WT down to 0.1mm
  • Coiled Tube
  • Up to 100–1000m long, for OD < Φ25mm
250918-fitting-390x420

Types of Fittings

  • Elbow:Butt-Weld┃Socket Weld ┃Threaded
  • 90°, 45°, and 180°. Available in Long Radius (LR) and Short Radius (SR) types.
  • Nominal Diameter (DN): DN6 – DN1200 (NPS ¼” – 48″)
  • Schedule : SCH 5, 10, 20, 30, 40, 80, 160, XXS
  • Custom angles (e.g., 30°, 60°), U-bend heat exchanger tubes
  • Tee:Equal┃Reducing┃Butt-Weld┃Socket Weld┃Threaded
  • Nominal Diameter (DN): DN6 – DN1200 (NPS ¼” – 48″)
  • Schedule : SCH 5, 10, 20, 30, 40, 80, 160, XXS<
  • Cap:Butt-Weld┃Threaded┃Socket Weld
  • Nominal Diameter (DN): DN6 – DN1200 (NPS ¼” – 48″)
  • Schedule : SCH 5, 10, 20, 30, 40, 80, 160, XXS
  • Custom non-standard sizes, small batch orders
  • Weldolet,Sockolet,Threadolet,Latrolet,Nipolet,Lapolet
  • Run Pipe: DN25 – DN1200 (NPS 1″ – 48″)
  • Outlet Branch: DN6 – DN200 (NPS ¼” – 8″)
  • Schedule: SCH 40, 80, 160, XXS (matched to run pipe)
251023-thin foil-390x420

Overall Supply Range of Metal Strip & Foil

Strip & Foil
  • Thickness(Thin Strip):0.02 mm – 0.5 mm
  • Thickness(Foil):≤ 0.02 mm（20 μm）
  • Narrow width: 5–50 mm (for electronic leads)
  • Wide width: 50–600 mm (for general coil applications)
  • Coil Length:Continuous rolls, each roll 10–3000 meters
  • Roll weight: 1–500 kg (depending on material density)
  • Finishes:Bright,Matte,Embossed,Coated
