Alloy 400 Description

Monel 400 is a Nickel-Copper alloy, resistant to sea water and steam at high temperatures as well as to salt and caustic solutions.
Monel 400 is a nickel-copper alloy with excellent corrosion resistance in a wide variety of media. Monel 400 is characterized by good general corrosion resistance, good weldability and moderate to high strength. The alloy has been used in a variety of applications. It has excellent resistance to rapidly flowing brackish water or seawater. It is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. The alloy is slightly magnetic at room temperature. Monel 400 is widely used in the chemical, oil and marine industries.
Corrosion resistance in an extensive range of marine and chemical environments. From pure water to nonoxidizing mineral acids, salts and alkalis.
This alloy is more resistant to nickel under reducing conditions and more resistant than copper under oxidizing conditions, it does show however better resistance to reducing media than oxidizing.
Good mechanical properties from subzero temperatures up to about 480C.
Good resistance to sulfuric and hydrofluoric acids. Aeration however will result in increased corrosion rates. May be used to handle hydrochloric acid, but the presence of oxidizing salts will greatly accelerate corrosive attack.
Resistance to neutral, alkaline and acid salts is shown, but poor resistance is found with oxidizing acid salts such as ferric chloride.
Excellent resistance to chloride ion stress corrosion cracking.

Chemical Composition %

% C Cr Ni Mo Cu P Mn Fe S W Co Ti
min 63 28.0
max 0.3 34.0 0.03 2.0 2.5 0.024

Mechanical & Physical Properties

0.2% Yield Strength Tensile Strength Elongation Modulus of Elasticity Density Melting Range
MPa MPa % GPa g/cm³ °C
310 550 30 180 8.83 1300-1350
  • COMMON TRADE NAMES
  • Monel® 400
  • NiCu30Fe
  • Nicorros Alloy 400
  • NW 4400
  • NS3102
  • NA 13
  • NU-30MU
  • МНЖМц 28-2.5-1.5

Specification

  • Plate:ASTM A240
  • Bar:ASTM A276
  • Forging:ASTM A182
  • Pipe-Seamless:ASTM A312
  • Pipe-Welded:ASTM A358
  • Flange:ASME B16.5
  • Fitting:ASTM A403

APPLICATION

  • Chemical processing equipment
  • Heat exchangersi
  • Marine applications
  • Oil and gas industry.

Welding consumables

  • TIG / GTAW: ERNiCu-7
  • SMAW：ENiCu-7
  • SAW：ERNiCu-7 strip
  • Flux: INCOFLUX 4

What Can We Offering

Available Product Range (in mm)

  • Hot-Rolled Steel Plates
  • Thickness: Ranging from 3mm to 120mm
  • Width: 600mm-2500mmStandard Width: 1000, 1219, 1500, and 2000mm
  • Length:1000mm-25000mm
  • Cut to Length: 2000 2440, 3000, 3048 and 6000mm
  • Surface Types: Includes NO.1, NO.4, 8K, Brush, and Checkered

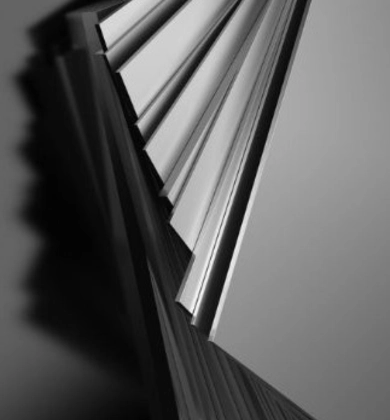

  • Cold-Rolled Steel Sheet/Plate
  • Thickness: Ranging from 0.2mm to 4mm
  • Width: 600mm-2000mm
  • Standard Width: 1000, 1219, 1500, and 2000mm
  • Length:1000mm-6000mm
  • Cut to Length: 2000 2440, 3000, 3048 and 6000mm
  • Form: Sheet Or Coil

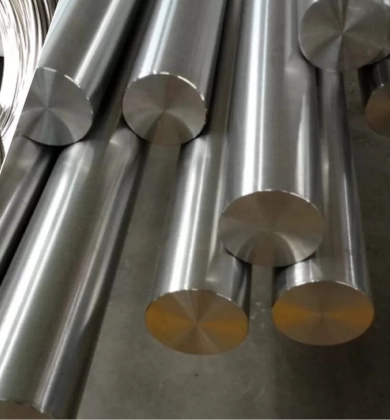

Available Round Bar Dimensions (in mm)

  • Diameter
  • General Range: 3mm to 800mm
  • Common Range: 25mm to 152mm
  • Specialized: Up to 300mm or more for certain applications
  • Length
  • Standard: 1 to 6 meters
  • Custom: Available in custom cut lengths
  • Other dimensions
  • Forms: Available in various forms including round, square, hex, flat, billet, and ingot
  • Finishes: Common finishes include bright, polished, and black
  • Tolerance:±0.05 mm (cold-drawn), ±0.4 mm (hot-rolled)

Type Of Flangs (Size/Dimensions)

  • Welding Neck, Reducer Flange,Socket Weld Flange
  • Dimensions:½” – 48″（DN15-DN1200）
  • Pressure Class:150# 300# 600#900#1500#
  • Facing Type:RF,FF,RTJ
  • Slip-On Flange,Lap Joint Flange,Threaded Flange
  • Dimensions:½” NB – 24″ NB（DN15 – DN600）
  • Pressure Class: Class 150 to 2500
  • Face: Raised face (RF), Ring type joint (RTJ)
  • Blind Flange
  • Dimensions:½” – 60″（DN15-DN1500）
  • Pressure Class:150# 300# 600#900#1500#

Types of Steel Pipes & Tubes

  •  Seamless Pipe
  • OD Φ6 – Φ630 mm, WT 0.5 – 80 mm
  • Welded Pipe
  • OD Φ15 – Φ3000 mm (up to 3m for spiral)
  • Precision Tube
  • OD Φ4 – Φ100 mm, WT tolerance ±0.05mm
  • Capillary Tube
  • OD 0.5 – 6 mm, WT down to 0.1mm
  • Coiled Tube
  • Up to 100–1000m long, for OD < Φ25mm

Types of Fittings

  • Elbow:Butt-Weld┃Socket Weld ┃Threaded
  • 90°, 45°, and 180°. Available in Long Radius (LR) and Short Radius (SR) types.
  • Nominal Diameter (DN): DN6 – DN1200 (NPS ¼” – 48″)
  • Schedule : SCH 5, 10, 20, 30, 40, 80, 160, XXS
  • Custom angles (e.g., 30°, 60°), U-bend heat exchanger tubes
  • Tee:Equal┃Reducing┃Butt-Weld┃Socket Weld┃Threaded
  • Nominal Diameter (DN): DN6 – DN1200 (NPS ¼” – 48″)
  • Schedule : SCH 5, 10, 20, 30, 40, 80, 160, XXS<
  • Cap:Butt-Weld┃Threaded┃Socket Weld
  • Nominal Diameter (DN): DN6 – DN1200 (NPS ¼” – 48″)
  • Schedule : SCH 5, 10, 20, 30, 40, 80, 160, XXS
  • Custom non-standard sizes, small batch orders
  • Weldolet,Sockolet,Threadolet,Latrolet,Nipolet,Lapolet
  • Run Pipe: DN25 – DN1200 (NPS 1″ – 48″)
  • Outlet Branch: DN6 – DN200 (NPS ¼” – 8″)
  • Schedule: SCH 40, 80, 160, XXS (matched to run pipe)

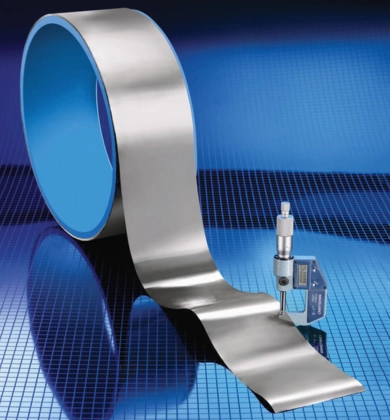

Overall Supply Range of Metal Strip & Foil

Strip & Foil
  • Thickness(Thin Strip):0.02 mm – 0.5 mm
  • Thickness(Foil):≤ 0.02 mm（20 μm）
  • Narrow width: 5–50 mm (for electronic leads)
  • Wide width: 50–600 mm (for general coil applications)
  • Coil Length:Continuous rolls, each roll 10–3000 meters
  • Roll weight: 1–500 kg (depending on material density)
  • Finishes:Bright,Matte,Embossed,Coated
